Executive Summary: A balcony solar system (often called a "plug-and-play" or mini PV system) enables apartment renters and urban dwellers to generate clean energy without roof ownership. By mounting lightweight or rigid solar panels onto a balcony railing, capturing direct sunlight, and converting DC electricity to grid-compliant AC power via a dedicated microinverter, the system feeds power directly into standard apartment wall outlets to offset household baseline consumption.

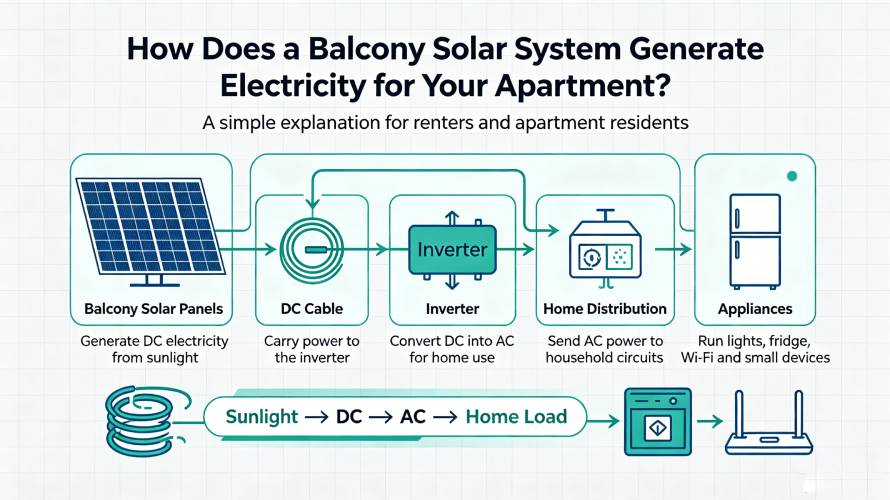

Electricity naturally follows the path of least resistance. When your balcony solar panel generates electricity, it sends AC power straight into your home's internal wiring circuit via a standard wall outlet. Household appliances automatically consume this local solar energy first, reducing the power that needs to be pulled through your electric utility meter.
Lightweight or glass solar panels securely mounted to the balcony handrail absorb sunlight, knocking electrons free in silicon cells to create Direct Current (DC) electricity.
DC power flows through MC4 cables into a compact microinverter attached behind the panels. The microinverter converts DC into grid-synced Alternating Current (AC).
The microinverter measures your apartment grid's voltage and frequency (e.g., 230V / 50Hz or 120V / 60Hz) to perfectly match phase angles before feeding energy safety through the plug.
The generated AC electricity enters the wall socket and instantly powers connected home appliances. Any excess energy can be stored in an optional balcony battery bank.
| Component | Primary Function | Key Technical Spec | Apartment Benefit |
|---|---|---|---|
| Flexible / Rigid PV Panels | Captures solar radiation & outputs DC power | 300W – 450W per panel | Lightweight options fit balcony weight limits |
| Grid-Tied Microinverter | Converts DC to AC; enforces safety anti-islanding | 96%–99% MPPT Efficiency | Shuts off automatically during power outages for safety |
| Balcony Mounting Racks | Secures panels to handrails or outdoor walls | Adjustable 15°–30° Tilt Angle | Non-invasive installation; 100% renter-friendly |
| Optional Storage Battery | Stores daytime excess energy for night use | 1 kWh – 2 kWh LiFePO4 | Prevents zero-cost feed-in to grid without rewards |
