MPPT Technology Principle & Power Generation Impact Analysis

1. What is MPPT? (Definition)

MPPT stands for Maximum Power Point Tracking. It is the core intelligent control algorithm built into solar inverters and charge controllers, exclusively used for photovoltaic power generation systems.

Solar panels do not output fixed power. Their voltage and current change in real time with sunlight intensity, ambient temperature, cloud cover, and partial shading. Under any environment, the PV module has only one unique Maximum Power Point (MPP) with the highest power output.

MPPT technology is essentially an automatic real-time impedance matching and peak power searching system that forces the solar array to always work at its maximum power point to avoid power waste.

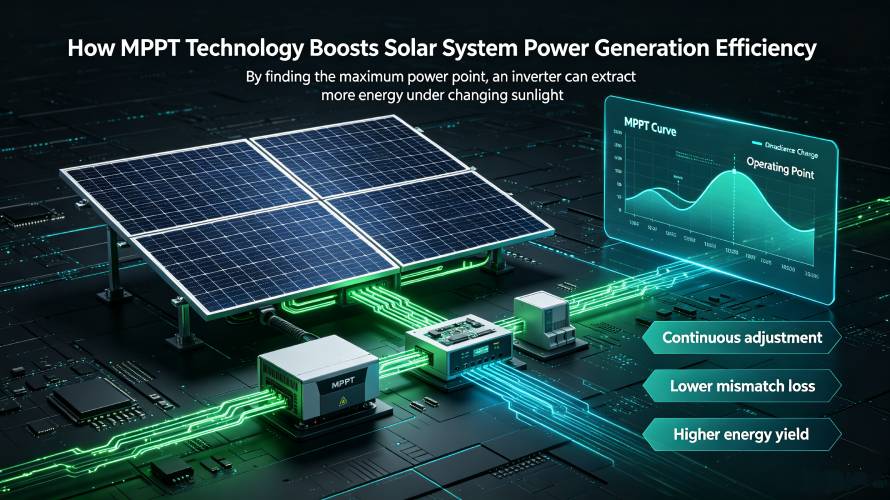

2. Working Principle of MPPT Technology

2.1 Core Physical Principle

Based on the maximum power transfer theorem in electronics: Maximum power output is achieved only when the load impedance matches the internal impedance of the power source.

Solar panels are nonlinear power sources. Their P-V (Power-Voltage) curve presents a single peak waveform. Without MPPT, the inverter works at a random off-peak point, resulting in massive power loss.

2.2 Operation Logic

The inverter’s MPPT chip continuously samples the DC voltage and current of solar panels in microseconds, calculates real-time power, and dynamically adjusts the duty cycle of the DC-DC converter:

• Track voltage changes in real time
• Compare power differences before and after adjustment
• Automatically lock the global maximum power point
• Achieve dynamic impedance matching

Core mathematical standard: dP/dV = 0 (When the power derivative relative to voltage is zero, the system reaches the optimal MPP state).

2.3 Common MPPT Algorithms

• Perturb & Observe (P&O): Mainstream algorithm for ordinary inverters, stable in strong sunlight
• Incremental Conductance: High-precision algorithm for high-end inverters, fast response to light changes
• Global MPPT Scanning: Special algorithm for shaded environments, effectively avoids local power point trapping

3. How Much Does MPPT Affect Power Generation?

MPPT is the most critical factor determining solar system power generation efficiency, far more important than minor differences in panel conversion rate.

3.1 Quantitative Power Generation Improvement Data

• Strong sunlight (no shade): MPPT increases power generation by 10%–15% compared with non-MPPT ordinary PWM control
• Cloudy days, weak light: Efficiency increases by 20%–25%
• Partial shading, uneven light: Efficiency increases by 25%–35% (the biggest advantage of high-precision MPPT)

Conclusion: A high-quality MPPT inverter can bring 15%–30% higher annual power generation than traditional non-MPPT inverters.

3.2 Key Influencing Factors of MPPT Efficiency

• Tracking speed: Microsecond-level fast tracking captures transient light power
• Global scanning capability: Avoids falling into local peak power points under shading
• Operating temperature adaptability: No drift or mis-tracking in high-temperature environments
• MPPT voltage range: Wider range adapts to more panel series-parallel combinations

4. Technical Comparison Table: MPPT vs PWM Inverter

5. Real Practical Case (Our Product & Project Experience)

5.1 Project Background

UAE Abu Dhabi residential & commercial off-grid solar project (the 7×2.5HP air conditioner load project we previously customized). Local features: strong light temperature difference, frequent transient cloud shade, high requirement for instantaneous power of air conditioners.

5.2 Our Product MPPT Parameter Configuration

• Device Model: 40kW/50kW Hybrid Solar Inverter
• MPPT Tracking Efficiency: 98.5% Max
• MPPT Voltage Range: 120–500V Wide Range
• Tracking Speed: Microsecond-level real-time scanning
• Algorithm: Upgraded global peak scanning algorithm, supports multi-module shaded adaptation

5.3 Actual Operation Data & Effect

• After replacing ordinary PWM inverters with our MPPT inverters, the daily power generation increased by 22.8% under the same solar panel configuration
• Stably supports simultaneous startup and operation of 7 sets of 2.5HP air conditioners + refrigerators + TVs + full-house lighting
• No power drop or overload tripping in cloudy and shaded conditions
• Customer feedback: The system has stable voltage, sufficient power, and greatly reduced dependence on auxiliary power

Core advantage verification: High-precision MPPT technology fully excavates the marginal power of solar panels, solves the pain point of sufficient panels but insufficient actual power in high-power off-grid systems.

6. Key Takeaways (Core Summary)

1. MPPT is the core efficiency engine of solar inverters, realizing real-time maximum power tracking of PV panels under variable light and temperature.
2. MPPT technology can improve the overall power generation of the system by 15%–30% annually, especially with obvious gain in weak light and shaded scenarios.
3. High-speed global MPPT scanning is the key to solve power loss of high-power air conditioner and load systems.
4. Compared with low-cost PWM inverters, MPPT inverters have higher long-term cost performance and are the standard configuration for commercial and high-power off-grid systems.
5. The wider the MPPT voltage range and the higher the tracking accuracy, the stronger the system compatibility and stability.

7. FAQ (English Professional Q&A)

Q1: Is MPPT necessary for solar inverters?
A: Yes, absolutely necessary. Non-MPPT inverters will cause 20%–30% permanent power waste. MPPT is the standard core technology for modern photovoltaic power generation systems, especially essential for off-grid and high-load systems.

Q2: Why does MPPT generate more power on cloudy days?
A: In weak light, the MPP of solar panels will shift significantly. MPPT can accurately capture the offset peak power, while ordinary fixed-voltage inverters will deviate severely, resulting in almost no power output.

Q3: What is the difference between local MPPT and global MPPT?
A: Ordinary MPPT only tracks local power peaks and is easy to misjudge under partial shading. Global MPPT can scan all power points to find the real maximum power, which is more suitable for complex installation environments.

Q4: Does MPPT affect the service life of solar panels?
A: No. On the contrary, MPPT makes the panels work at the optimal stable point, avoids long-term off-peak overload operation, and effectively prolongs the service life of PV modules.

Q5: How much extra cost can MPPT save for customers?
A: Taking a 40kW system as an example, MPPT brings 20%+ power increase, which can save hundreds of dollars in electricity bills every month and recover the equipment premium cost in a short time.

Q6: Will high temperature affect MPPT tracking accuracy?
A: Our upgraded MPPT algorithm has temperature drift compensation function. It maintains 98%+ high tracking efficiency in the working temperature range of -20℃～+60℃, adapting to high-temperature weather in the Middle East and Africa.
