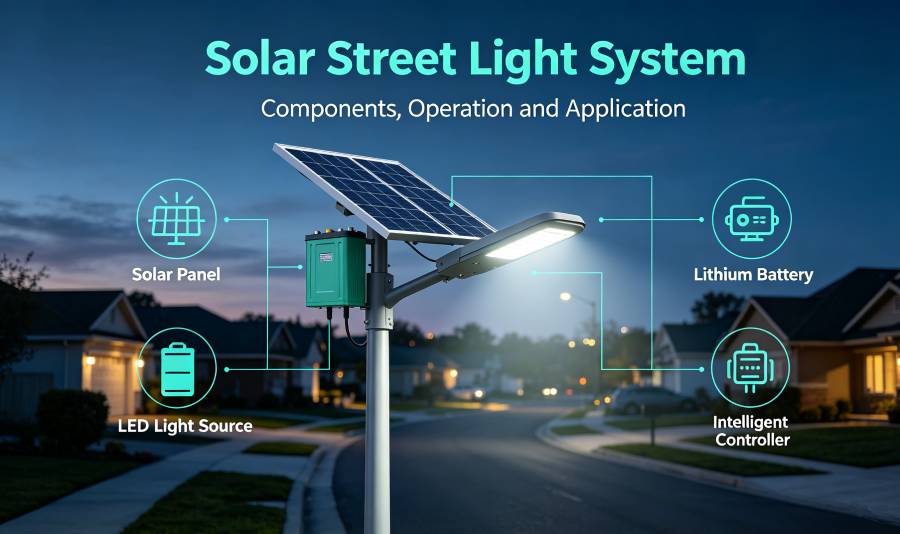

A Solar Street Light System harnesses photovoltaic (PV) technology to convert sunlight into direct current, storing energy in high-efficiency lithium battery packs to power luminescent LED modules autonomously at night. Serving as a crucial zero-emission infrastructure for municipal roads, highways, and off-grid remote regions, modern solar lighting integrates MPPT smart charging, adaptive dimming algorithms, and IoT connectivity to guarantee 365-day continuous illumination.
Solar street lights are engineered into three primary technical topologies to accommodate diverse installation environments and wind load conditions:
Integrates PV panel, LiFePO4 battery, MPPT controller, PIR sensor, and LED fixture into a single housing. Enables extremely fast, low-cost installation.
Separates the solar panel from the lamp fixture (or battery housing), allowing flexible PV orientation to maximize sunlight harvesting in high-wattage highway applications.
Combines solar lighting with Zigbee/4G/5G gateways, municipal surveillance, environmental sensing, and remote cloud management for centralized city lighting dispatch.
| Configuration Metric | All-in-One System | Split Solar System |
|---|---|---|
| Installation Complexity | Plug & play; zero external wiring | Requires mounting brackets & cable routing |
| Power Output Range | 10W – 120W (Best for urban & pathway) | 60W – 200W+ (Best for highways & ports) |
| PV Angle Adjustability | Fixed horizontal/slanted orientation | Fully adjustable 360° tilt for maximum sun tracking |
| Wind Load Resistance | Sleek profile; superior wind resistance | Requires reinforced pole structure for heavy wind |
Proper solar street lighting sizing prevents blackout risks during consecutive rainy days. Component dimensioning relies on exact geographical and electrical variables:
Using programmed dimming (e.g., 100% power for 4h, 50% for 4h, 30% for morning hours) reduces required battery capacity by up to 40% while preserving light coverage.
Standard municipal specifications mandate 3 to 5 continuous rainy/cloudy days of autonomy margin without complete solar replenishment.
